深圳市盈源电子有限公司 Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China | |||||||

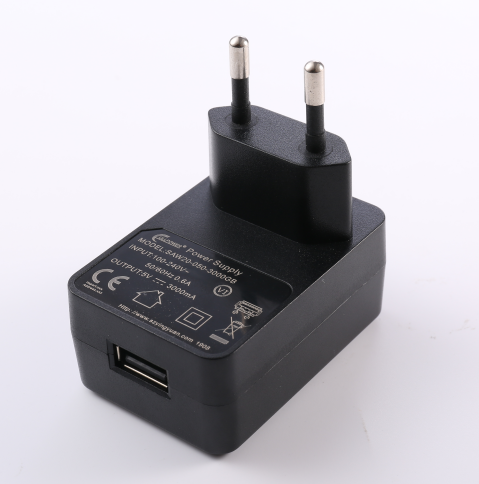

FEATURES | SAFETIES APPROVALS | PRODUCTS PICTURE | |||||
v EFFICIENCY VI v 18-20 WATT OUTPUT POWER v OVERCURRENT PROTECTION v SHORT CIRCUIT PROTECTION v INPUT PROTECTION v ROHS COMPLIANT | v CE-EMC v GS v CE-LVD v ROHS v REACH |
| |||||
TYPICAL MODEL LIST | |||||||
I/P Voltage | Typical model | Output Voltage | Output Current | Ripple & noise | Efficiency | ||
90 - 264V 47 - 63HZ | SAW20-050-2500GB | 5V | 2500mA | 60mv | VI | ||
SAW20-050-3000GB | 5V | 3000mA | 60mv | VI | |||
INPUT SPECIFICATIONS | GENERAL SPECIFICATIONS | ||||||
Input Voltage | 90〜264VAC | Primary to Secondary | 50MΩ MIN | ||||
Input Frequency | 47〜63Hz | Efficiency | VI | ||||
Input Current | 1.2A Max | Standby Power | 0.1W MAX | ||||
Inrush Current | 40A Max | Leakage Current | 0.25mA MAX | ||||
OUTPUT SPECIFICATIONS | ENVIRONMENTAL SPECIFICATIONS | ||||||
Output Voltage Range | 5V-36V | Operating Temperature | 10°C~40°C | ||||
Output Current Range | 10mA-3000mA | Cooling | Convection | ||||
Output Power Range | 20W Max | Temperature Coefficient | 0.05%/°C | ||||
Short Circuit Protection | Automatic Recovery | Humidity | 5~95%RH(non-condensing) | ||||
Over-Current Protection | Automatic Recovery | Storage Temperature | -20°C~+80%°C | ||||
Ripple and Noise | 100mVp-p max | PHYSICAL SPECIFICATIONS | |||||
Turn On Time | 20-30mS normal | Physical Specifications | 59mm * 40.9mm * 26.4mm | ||||
Line Regulation | 1% max | SAFETIES STANDARD | |||||
Output Regulation | ±5% | Safeties Standard | 62368/ 60335/ 61558 | ||||

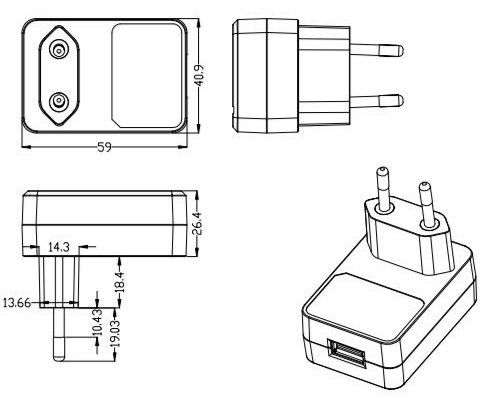

MECHANICAL SPECIFICATION | PACKING DETAILS | ||||||
|
100pcs/carton,15kg/carton Carton size: 47*36.5*475px |
18020 EU Plug - USB
