FEATURES

SAFETIES APPROVALS

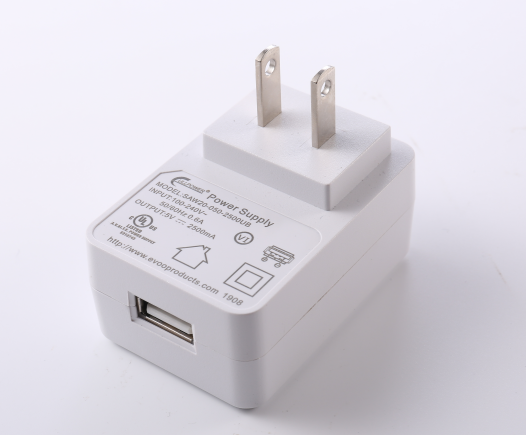

PRODUCTS PICTURE

v EFFICIENCY VI

v 18-20 WATT OUTPUT POWER

v OVERCURRENT PROTECTION

v SHORT CIRCUIT PROTECTION

v INPUT PROTECTION

v ROHS COMPLIANT

v UL FCC

v ROHS

v REACH

TYPICAL MODEL LIST

I/P Voltage

Typical model

Output Voltage

Output Current

Ripple & noise

Efficiency

90 - 264V

47 - 63HZ

SAW20-050-2500UB

5V

2500mA

60mv

VI

SAW20-050-3000UB

5V

3000mA

60mv

VI

INPUT SPECIFICATIONS

GENERAL SPECIFICATIONS

Input Voltage

90〜264VAC

Primary to Secondary

50MΩ MIN

Input Frequency

47〜63Hz

Efficiency

VI

Input Current

1.2A Max

Standby Power

0.1W MAX

Inrush Current

40A Max

Leakage Current

0.25mA MAX

OUTPUT SPECIFICATIONS

ENVIRONMENTAL SPECIFICATIONS

Output Voltage Range

5V-36V

Operating Temperature

10°C~40°C

Output Current Range

10mA-3000mA

Cooling

Convection

Output Power Range

20W Max

Temperature Coefficient

0.05%/°C

Short Circuit Protection

Automatic Recovery

Humidity

5~95%RH(non-condensing)

Over-Current Protection

Automatic Recovery

Storage Temperature

-20°C~+80%°C

Ripple and Noise

100mVp-p max

PHYSICAL SPECIFICATIONS

Turn On Time

20-30mS normal

Physical Specifications

59mm * 40.9mm * 26.4mm

Line Regulation

1% max

SAFETIES STANDARD

Output Regulation

±5%

Safeties Standard

UL 62368  UL1310

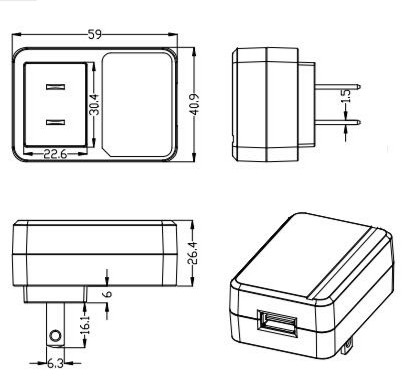

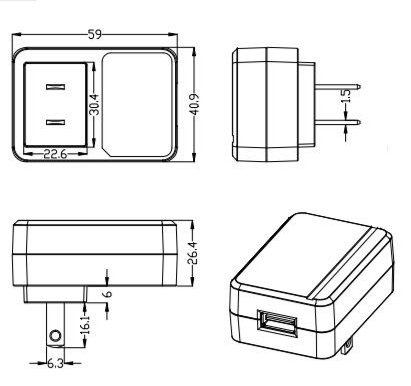

MECHANICAL SPECIFICATION

PACKING DETAILS

100pcs/carton,15kg/carton

Carton size: 47*36.5*475px
